SUSPENSION
We sell both FAT and MTB suspension
Call or email for items not listed on this page
FAT BIKE FORKS
Manitou Mastodon PRO
Manitou Mastodon COMP
WREN ATK
ROCK SHOX BLUTO RCT3
MTB SUSPENSION
ROCK SHOX
MANITOU
MARZOCCHI
DVO
FOX
CANE CREEK
FOES MUTZ 150 / Mastodon PRO 150 EXT - custom build

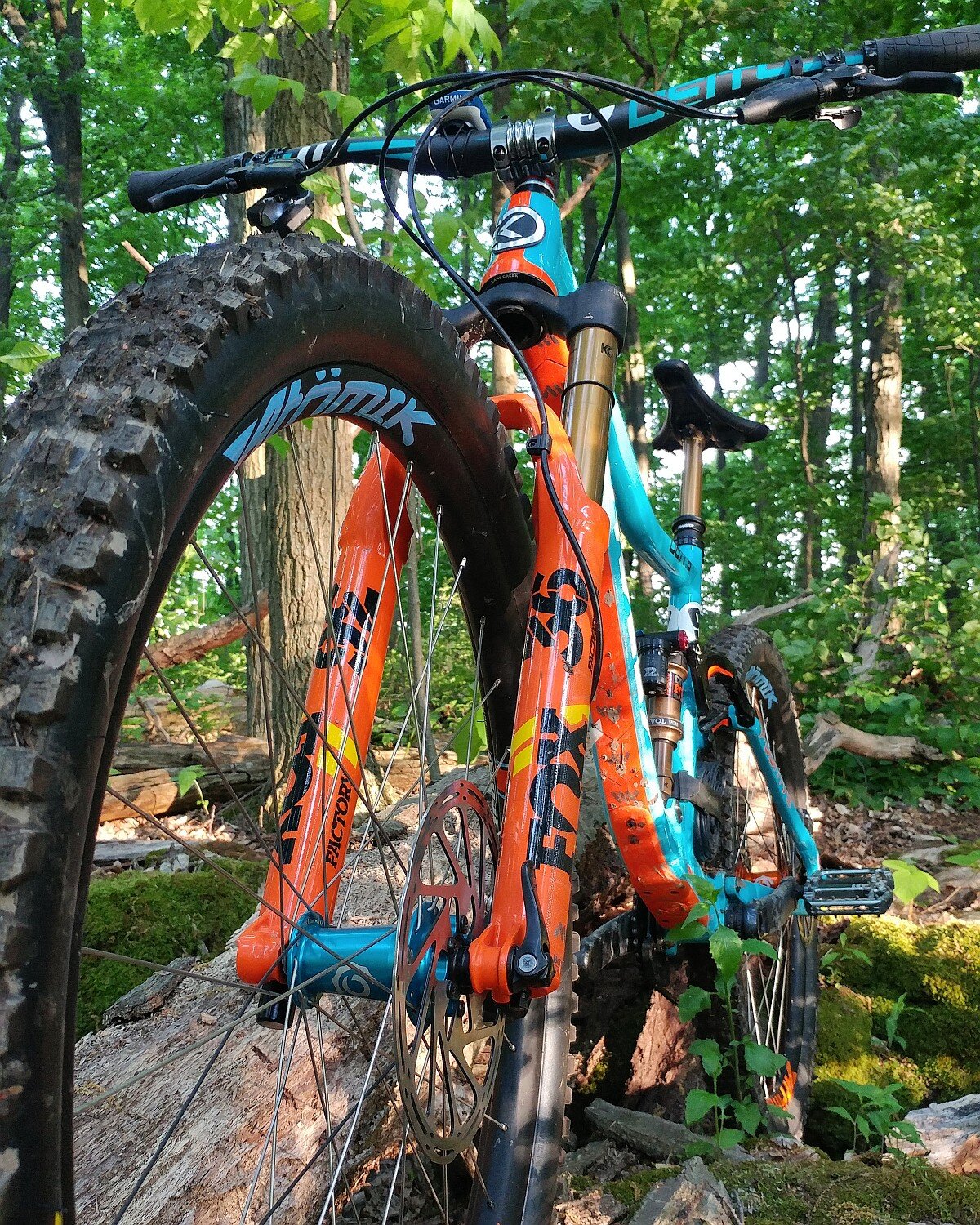

Knolly Fugitive LT / Fox R36 Factory Edition - custom build
RideFATbikes.ca
FAT BIKE FORK SELECTION
CONSULTATION SERVICE
“What is the best Fat Bike suspension fork for my bike?”
We receive many calls and emails about this topic.
MANY PEOPLE PICK THE WRONG SUSPENSION FORK CONFIGURATION FOR THEIR FAT BIKE AND IT CAN ADVERSELY AFFECT HANDLING, WEIGHT BALANCE AND PERFORMANCE.
We know fat Bike suspension forks are an investment of about $1300 (or more) CAD, and there are 15 different forks (and variations thereof) from several leading manufacturers to choose from in North America.
Whichever suspension fork you choose, it WILL change the performance and handling of your bike (either for better or for worse).
We have tested all these forks, and provided extensive reviews on many of them.
Customer Service is very important to us, and providing you the dedicated “free time” to answer this question during the current busy season is very limited. The best option is to purchase a block of consulting time. The flat fee of $95 CAD ensures you get the dedicated time needed to figure out the best Fat Bike suspension fork for your bike, and our time is compensated in doing so.
The $95 CAD consulting fee can be applied as a discount towards your Fat Bike suspension fork purchase, for all Canadian customers.
During this consultation, which may take up to 45 minutes, we will research a number of variables that can affect (existing frame geometry/components/rider bio-metrics), or will be effected (by the addition of a suspension fork).
Our goal is to find the two “best-fit” scenarios to choose from. Topics covered include :
Frame Size
Frame Geometry
Frame’s manufacture date
Stack and Reach
HT and ST angles
Tire / Wheelset Sizes
Climate/Weather riding conditions
Manufacturer warranty policies (which may be voided if using particular forks)
Bottom Bracket changes
Rider Height / Weight
Preferred Trail types
ASTM / CAT ratings of the components used on the bike
“non-suspension corrected” frames
FAT BIKE SUSPENSION FORK SHOOTOUT
REVIEWS
WREN ATK 110 and 150
MANITOU MASTODON PRO
100 EXT / 120 STD / 150 EXT
FAT BIKE SUSPENSION
MANITOU MASTODON PRO LE
(GEN2, up to mid -2023)
CLOSEOUT SALE
SAVE 30-50%
Limited production run of 300 units worldwide
Arctic Camo
100 / 120 / 140 STD or EXT
MANITOU MASTODON PRO
Gen2 edition
(up to mid-year 2023)
CLOSEOUT SALE
$1349 CAD
Save 30-50%
100 / 120 / 140 / 150 STD or EXT
Travel : 100 mm
Leg Length = 367mm
AC (100) : 511 mm (STD)
AC (100) : 531 mm (EXT)
Travel : 120 mm
Leg Length = 367mm
AC (120) : 531 mm (STD)
AC (120) : 551 mm (EXT)
Travel : 140 mm
Leg Length = 367mm
AC (140) : 551 mm (STD)
AC (140) : 571 mm (EXT)
Travel : 150 mm
Leg Length = 377mm
AC (150) : 571 mm (STD)
AC (150) : 581 mm (EXT)
Extended (EXT) ride height versions fit up to 26×5.15” / 27.5×4.5” / 29x3.0” tires
Standard (STD) ride height versions fit up to 26×4.0” / 27.5×3.8” tires
Note : (STD) Ride Height also fits some new 26” x 4.4 and 4.8’s @ 10 PSI or less, that use a shallow depth center lug tread, such as the Schwalbe Jumbo Jim, but may bottom out on other tires of the same width, that use a taller center lug design.
7050 Series Aluminum with 34mm leg diameter, and Forged Aluminum hollow crown.
Hub Spacing : 150mm
TA - Hexlock SL 15x150mm thru-axle
Offset : 51mm
Brake : Post Mount (180mm)
Damping System : MC2 compression damping, with Dorado Air Spring.
Temperature Ranges : Tested and verified by manufacturer down to -20c. (Verified by RideFATbikes.ca down to -25C)
1 year Warranty
Note : In the last 3 years, RideFATbikes.ca has yet to see a single warranty claim on the Manitou Mastodon PRO.
ROCKSHOX
(version A5, 2021-2023)
BLUTO RCT3 100
MSRP $1024 CAD
Sold Out
— Discontinued by MFG —
Vendor Item #00.4020.560.000
UPC = 710845845284
BLUTO RCT3 120
MSRP $1024 CAD
Sold Out
— Discontinued by MFG —
Vendor Item # 00.4020.560.001
UPC = 710845845291
SPECIFICATIONS
Weight : 3.9 lbs / 1800gr
Travel : 100 / 120 mm
AC (100) : 511 mm
AC (120) : 531 mm
Rotor Sizes = 160-220mm
Tire Compatibility : up to 26 x 4.8" and 27.5 x 3.8"
MAX Tire Width : 116mm
Lockout control : Yes. Full lockout
Rake : 51mm
Hub Compatibility : 150mm thru-axle standard hub only (5x150 TA)
Steerer : Tapered only (1 1/8” - 1.5”)
Stanchions : 32mm (aluminum)
Lower Tubes : Magnesium
Suspension : (new) Motion Control Air Damper
Damping Adjustments : External Rebound, Low-Speed Comp to Lockout
Spring Adjustments : Air Pressure, Bottomless Tokens
FEATURES
Motion Control damper featuring low speed compression adjust to lockout with external rebound adjust
Engineered specifically for fat bikes with its crown, arch, and axle optimized to tackle the increased torsional loads of its wide stance
Seals and grease rated for low temperatures maintaining consistent performance in all conditions
NOT RECOMMENDED FOR EBIKES
WREN ATK
“TWIN- AIR” FAT BIKE SUSPENSION FORK
(circa 2015+)
WREN ATK 110
WREN ATK 150
WREN ATK 110
$699.99 USD
ON Sale $449 CAD
( Archived item )
(Replaced by Mastodon PRO 100 / 120 )
Weight : 4.8 lbs
Travel : 110 mm (adj. down to 80 mm)
AC Length 530 mm : 110 mm travel : 26x5.0” / 29x3.0” tires
AC Length 530 mm : 100 mm travel : 27.5x4.5” tires
AC Length 520 mm : 100 mm travel :26x5.0” / 29x3.0” tires
AC Length 520 mm : 90 mm travel : 27.5x4.5” tires
AC Length 510 mm : 90 mm travel : 26x5.0” / 29x3.0” tires
AC Length 510 mm : 80 mm travel : 27.5x4.5” tires
AC Length 500 mm : 80 mm travel : 26x5.0” / 29x3.0” tires
WREN ATK 150
$749.99 USD
ON SALE $499 CAD
( Archived item )
( Replaced by Mastodon PRO 140 / 150 )
Weight : 5.1 lbs
Travel : 150 mm (adj. down to 120 mm)
AC Length 570 mm : 150 mm travel : 26x5.0” / 29x3.0” tires
AC Length 570 mm : 140 mm travel : 27.5x4.5” tires
AC Length 560 mm : 140 mm travel : 26x5.0” / 29x3.0” tires
AC Length 560 mm : 130 mm travel : 27.5x4.5” tires
AC Length 550 mm : 130 mm travel : 26x5.0” / 29x3.0” tires
AC Length 550 mm : 120 mm travel : 27.5x4.5” tires
AC Length 540 mm : 120 mm travel : 26x5.0” / 29x3.0” tires
AC Length 540 mm : 110 mm travel : 27.5x4.5” tires
(All tire diameters measured at 12 PSI on 82mm OD rims, but these tires can stretch over time)
27.5 x 4.5” Terrene Cake Eater @ 784 mm OD
26 x 5.0” Terrene Johhny5 @ 766 mm OD
26 x 4.8” Schwalbe JJ Addix @765-769 mm OD
26 x 4.8” Maxxis Minion EXO TR FBF @ 753 mm OD
26 x 4.6” Terrene Cake Eater @ 752 mm OD
27.5 x 3.8” Maxxis Minion EXO TR FBF @ 750 mm OD
AL7050 Hard-Anodized AL 7050 Aluminum Uppers (43 mm) and (36 mm) Stanchions w/ AL6066T6 3D forged Crown.
Hub Spacing : 150 mm
TA - 15x150mm bolt-on Thru Axle
Offset : 45 mm
Brake : Post Mount (160 mm)
Damping System : Twin-Air Spring, w/ All-Weather sealed oil cartridge and adjustable Rebound/Compression, with true lockout.
Temperature Ranges : New All-Weather Damper tested and verified by Wrensports to -27c. (Our RideFATbikes.ca test in 2018 rated it to only -12C after 2 hours of outdoor use).
2 year Warranty
RETAIL BOX EDITIONS
NOTE : All our suspension products are RETAILED BOXED VERSIONS (not gray market OEM like several of our competitors). RideFATBikes.ca offers suspension fork installation kits, valued at $35-50 CAD.
The RideFATbikes.ca “Add-On” Suspension Fork installation kits contains :
Cane Creek Star Nut
Cane Creek hardened steel Top Cap bolt
Cane Creek Crown Race (Base kit)
Cane Creek “Blue Seal” Crown Race (Premium kit)
NOTE : Retail boxed version of suspension fork includes :
MANITOU : IVA/Air Charts, Suspension tokens, Thru-Axle and an additional “Stealth” graphics sheet.
WREN : Carbon Bash Guards, Air Charts, Suspension tokens, Bolt-On Thru-Axle.
MANITOU MASTODON PRO

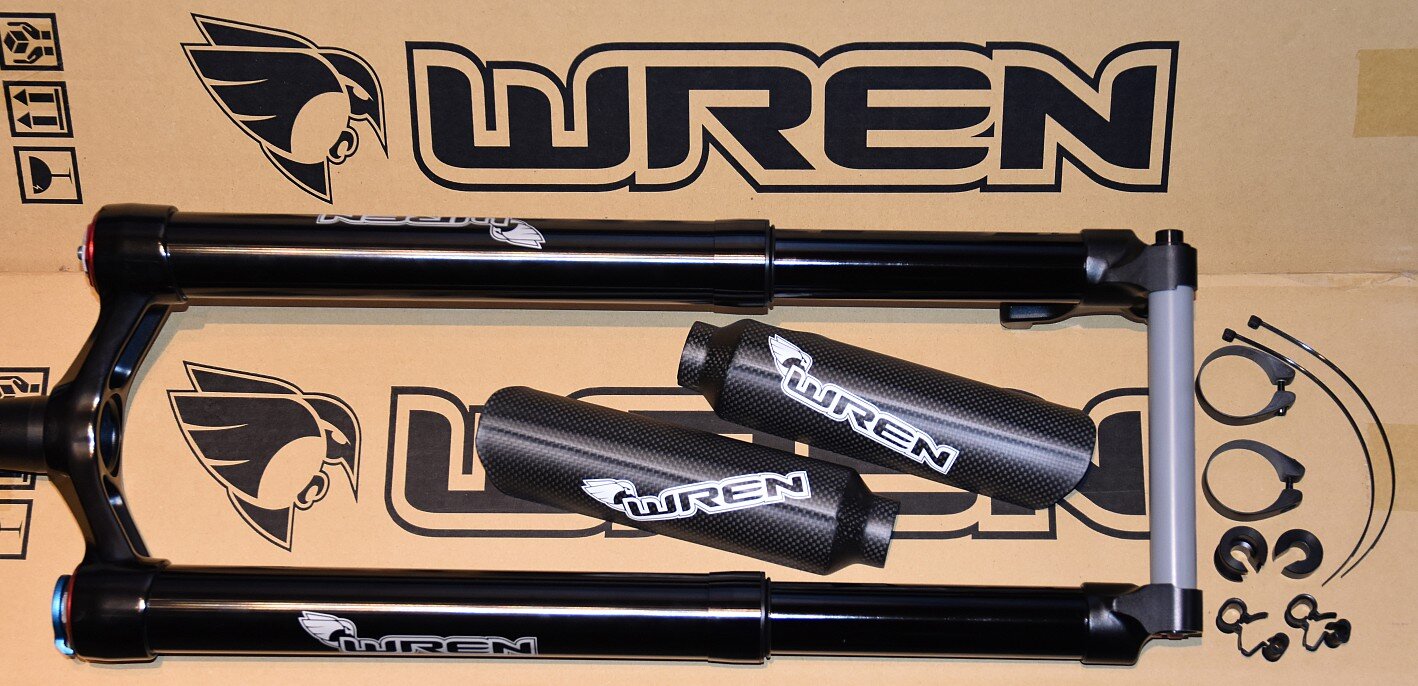

WREN ATK w/ Carbon Bash Guards - 2015+ Edition
ACCESSORIES
EXTENDED CROWN RACES
If you own a fat bike frame that is not a “suspension-corrected” design, it may have been fabricated prior to 2016. After installing a fat bike suspension fork on one of these frames, you may find the fork contacts the frame if turned 90 degrees.
If this is the case, you will need a Crown Race Extender, to prevent damage to the bike or injury to the rider. Luckily, there are two sources for these parts at time of writing (Summer 2020).
CANE CREEK (North Carolina USA) makes +3mm and +6mm extended crown races.
MTB TOOLS (California USA) machines custom extended crown races in lengths from +5mm to +25mm.
Prices range from $15 to $30 USD, or approximately $50-75 CAD after shipping and importation fees are assessed.
MASTODON PRO
IRT - INFINITE RATE TUNE
$90 USD / $125+ CAD
The Manitou Dorado IRT allows far more customization of the stock Mastodon PRO air spring.
Infinite Rate Tune (IRT) is a two-stage air spring configuration that allows for advanced spring rate tuning by independently adjusting air pressures in the beginning, mid and end strokes. The IRT secondary positive air spring affects only the middle to end stroke of the fork. This allows the primary air spring to be set to lower pressures for improved small bump sensitivity while maintaining independently adjustable mid-stroke support and end-stroke ramp-up.
SUSPENSION FORK SAG and AC HEIGHT SETTINGS
WARRANTY SUPPORT
RideFATbikes.ca is an authorized Canadian reseller for all the suspension products we carry.
Canadian customers can shop with confidence, knowing their suspension purchases from RideFATbikes.ca are covered by a full factory warranty.
CREDITS
All unboxing photos are of original ownership content and copyright (c) RIDEFATBIKES.ca.
Special thanks to Hayes/Manitou and Wrensports LLC for their stock media content.
Additional product review videos, courtesy of Pat Smage.
QUALITY PRODUCTS
RideFATbikes.ca only sells the products we ride, race, and continually test ourselves. Our crew evaluates which products offer the most performance benefits to the rider, and we look for excellent manufacturer Warranty Support - should it ever be needed.
We actively contact our customer base each season to obtain their feedback on products they purchased, and continue to stock the components that perform and operate well, or discontinue those that become problematic or pose potential safety concerns.
